PRODUCT

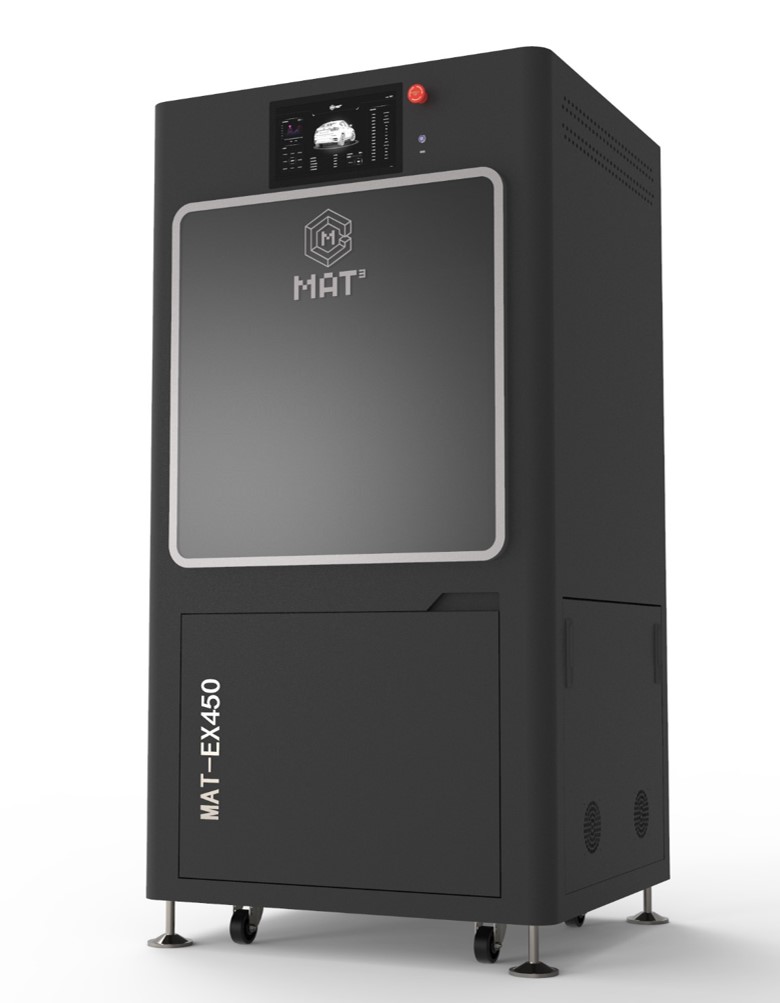

GTLc860-MAT Light Curing 3D Printer
Product Attributes :
Thanks to the dynamic exposure technology, GTLc-MAT series 3D printers have extremely high printing speed and accuracy. Equipped with injection mold level materials, thousands of parts can be printed every day.

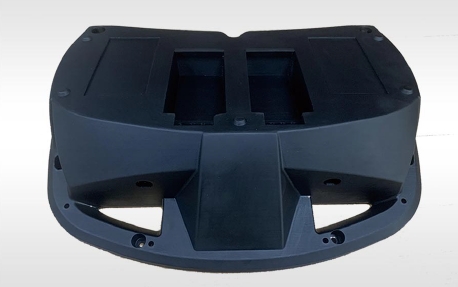

Meanwhile, it makes it possible to print photosensitive resin as nylon strength since special material developed, which widely helped to fulfill high accuracy and high strength.
Product Description
Specifications
| Exposure | Up exposure |
| Resolution | Dual 4K dynamic |
| Pixel resolution | 100um |
| Building size | 768*432*400mm |
| Printing accuracy | +-0.1mm |
| Layer thickness | 0.05~0.12mm |
| Base | Marble |
| wave length | 385/405nm |
| Printing capacity | 2kg/h (Max.) |
| File format | .stp, .stl, .slc |
| Operation system | Linux |
| Weight | 1000kg |
| Size | 1260*900*1850mm |
| Power | 220V 800W |
Features
- High efficiency
- Up to 0.05mm accuracy
- Accuracy does NOT decrease along with length increasing
- Good surface roughness performance
- Good strength performance
- Good performance on temperature resistance
- Various marterials
