PRODUCT

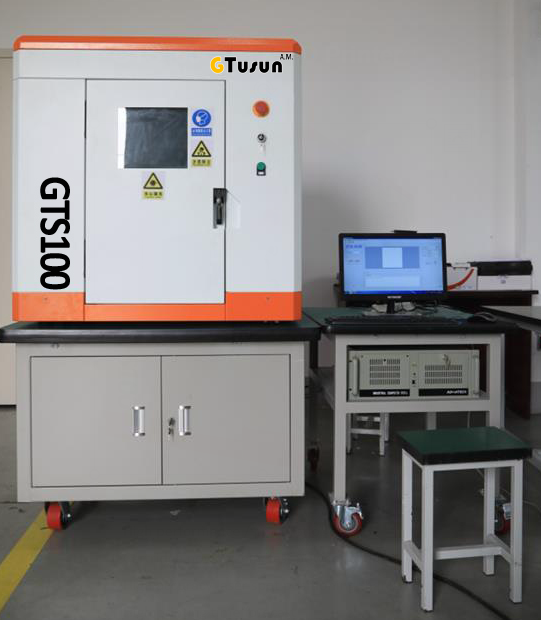

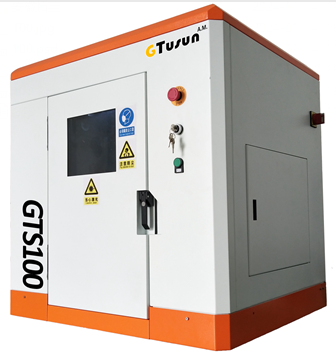

GTS100-T Desktop SLM 3D Printer
GTS100-T is a small size 3D printer which can be placed on desks, especially for R&D, medical applications, it can be used such as design institutes, universities, and other research departments.
Specifications
|
Building size |
100*100*100 mm |
|
Laser power |
200W |
|
Laser wave length |
1060~1080nm |
|
Printing capacity |
≥3cm³/h |
|
Max. Scan speed |
3 m/s |
|
Layer thickness |
20~80 μm |
|
Voltage |
AC220V |
|
Printing accuracy |
0.05mm* |
|
Z-axis positioning |
≤0.008mm |
|
Materials |
Titanium alloy, Cobalt-chromium alloy, Aluminum alloy, Stainless steel, Die steel, etc. |
* - Depends on printing process and material.
Applications

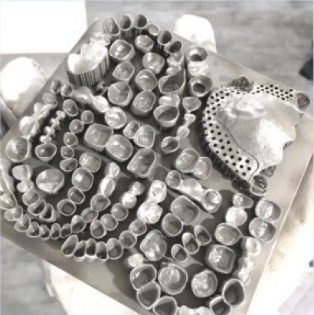

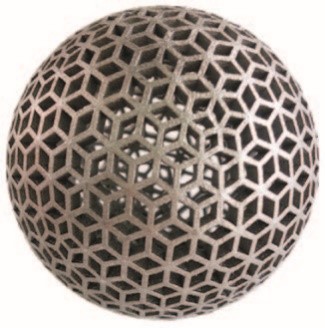

The GTS100-T is a generic SLM machine for specific applications such as medical like denture and implants printing, material R&D, jewelry, etc. Thanks to its small size and portability, it can be easily placed on desks and operated with functions such as fast powder exchange, etc. It can work widely with the materials like stainless steel, titanium alloy, chrome-cobalt alloy, aluminum alloy, etc.
After that, the utilization of the advanced software can help operators fast and accurately place parts to be printed and make the printing efficient.
