PRODUCT

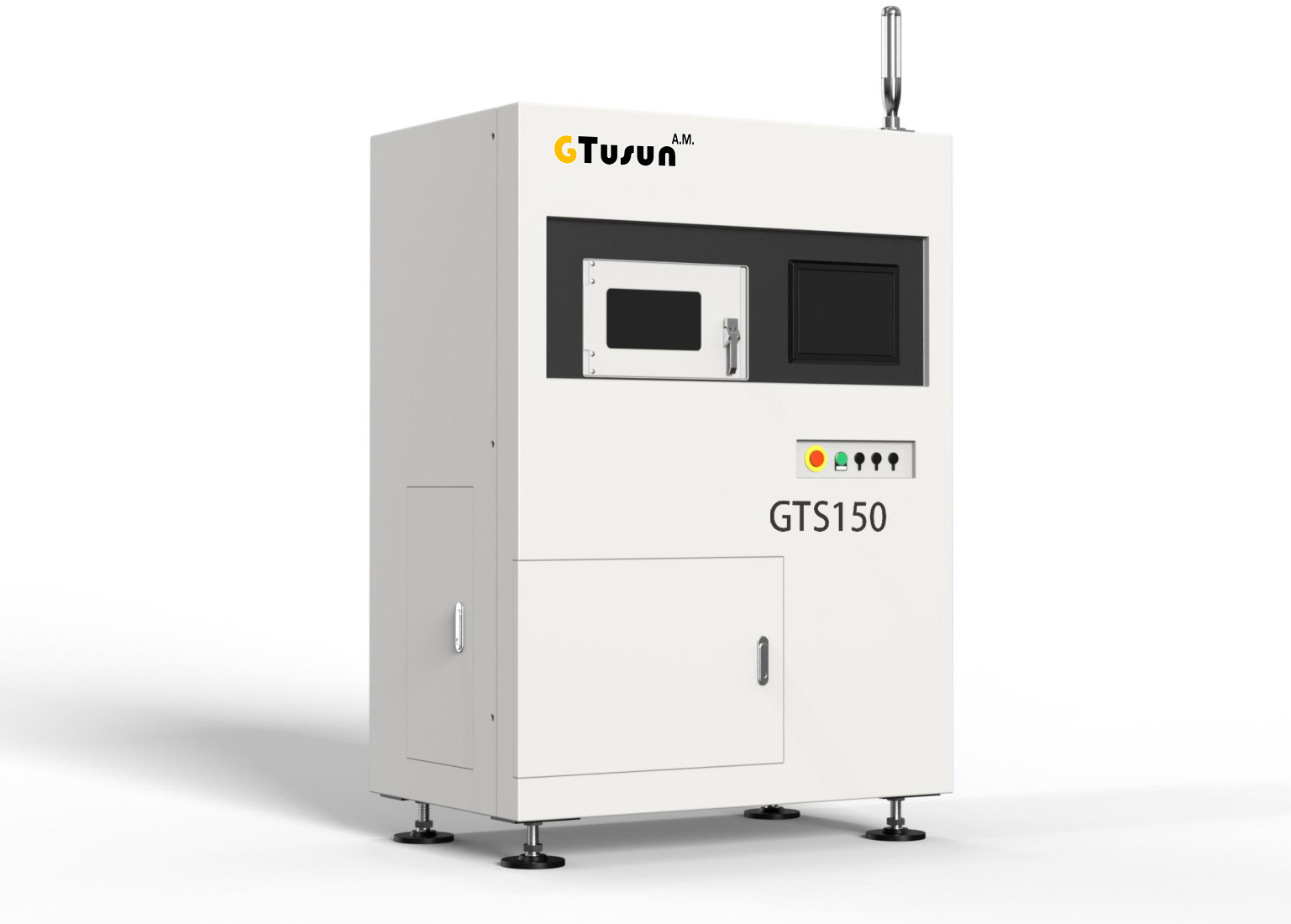

GTS150 Metal 3D Printer
GTS150 SLM metal 3D printer, is specifically designed for the small amount powder printing. For example, dental, jewelry, new material research. Thanks to the small amount and fast printing efficiency, it can be used perfectly for some expensive powder. Meanwhile, shrinking chamber is available as an option.
Specifications:
|
Product model |
GTS150 |
|
Printing size |
Ø150*80mm (customization is available) |
|
Laser |
500W*1/2 |
|
Laser spot diameter |
90-120um |
|
Powder layer thickness |
0.03~0.09mm |
|
Powder delivery method |
Bottom feeding chamber |
|
Recoating method |
Single direction |
|
Scanning speed |
7-12m/s |
|
Printing accuracy |
±0.1mm |
|
Power |
2kw |
|
Operating environment |
25±3℃, humidity <75% |
|
Supported file format |
stl |
Applications:

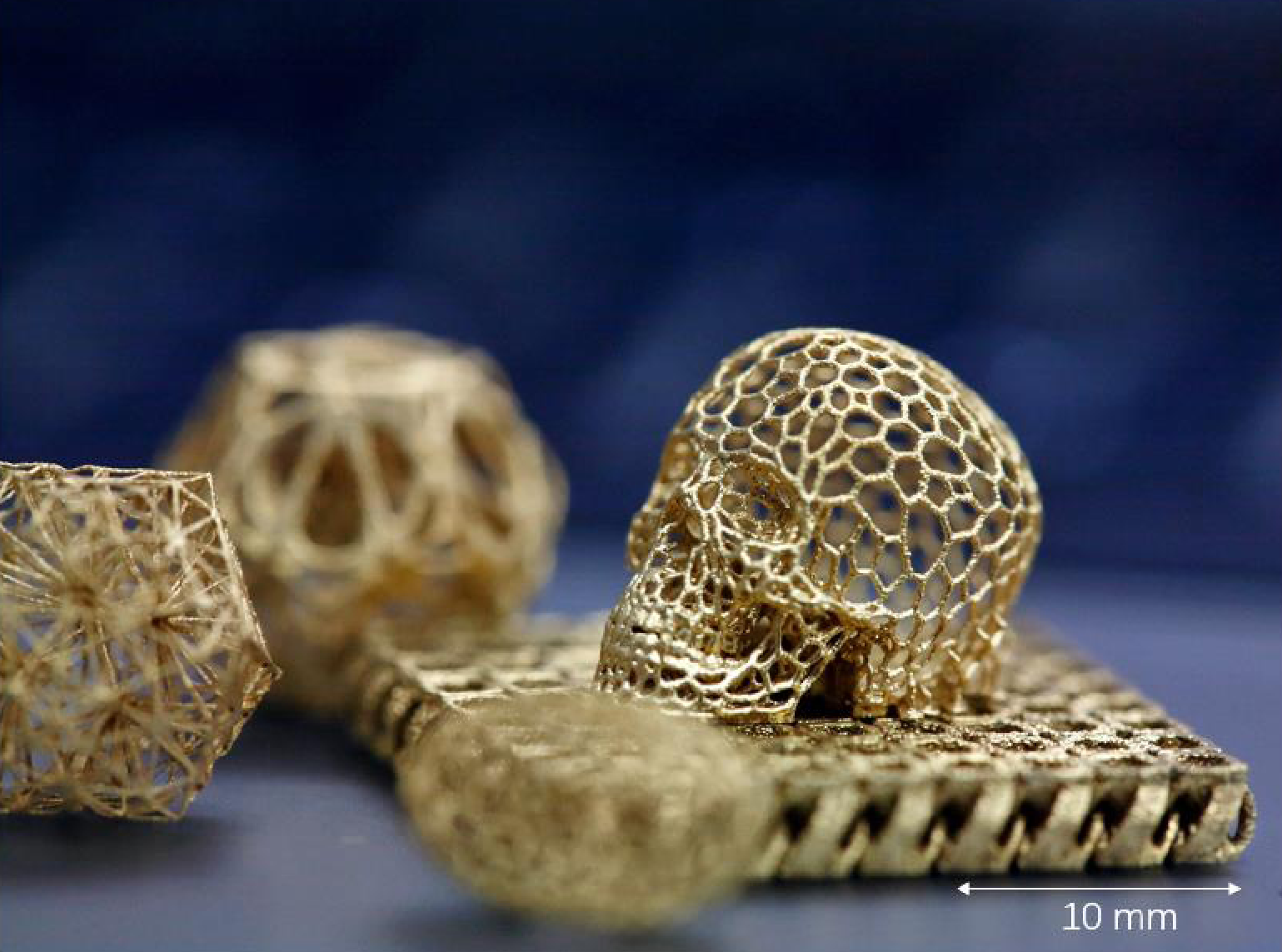

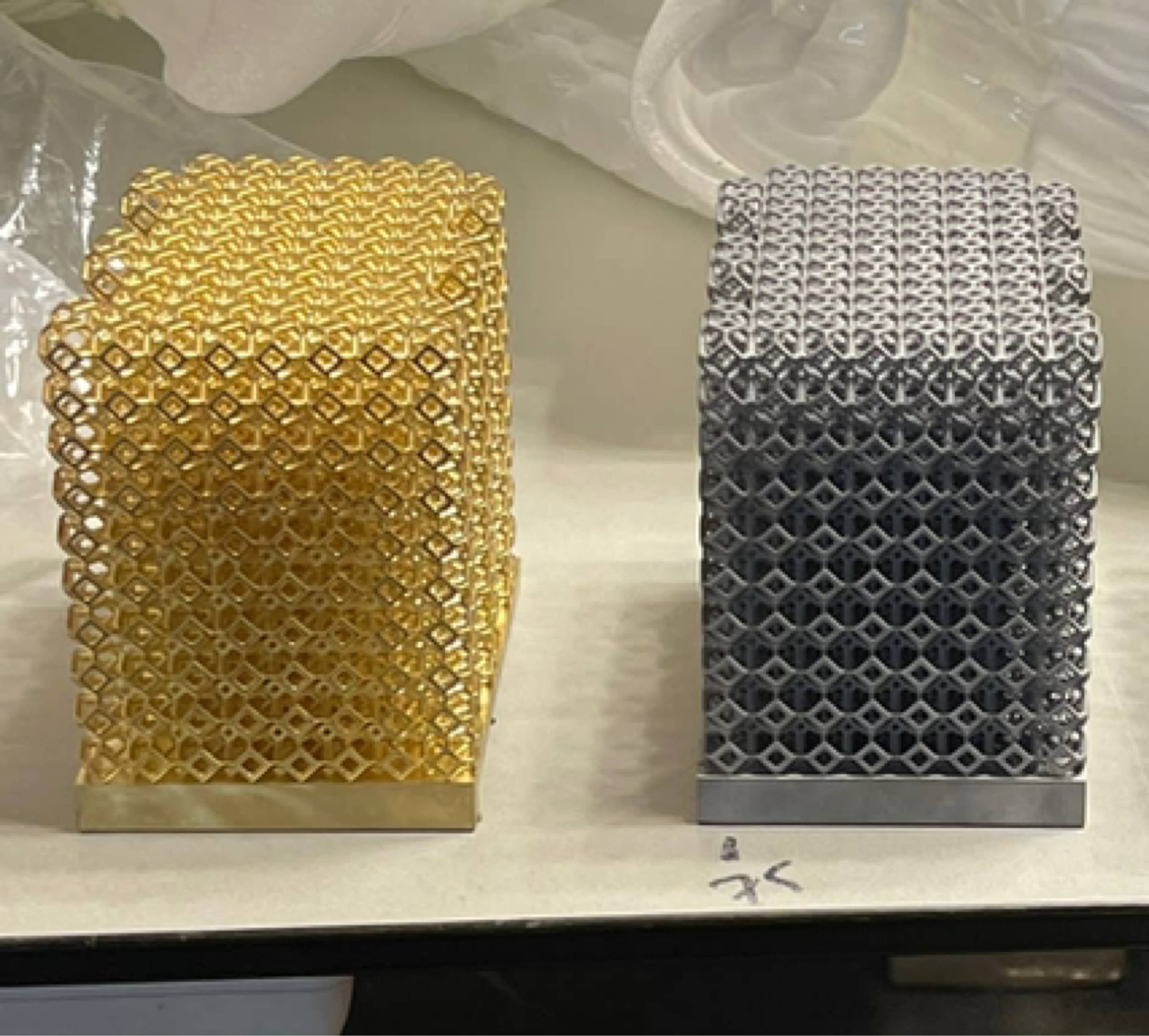

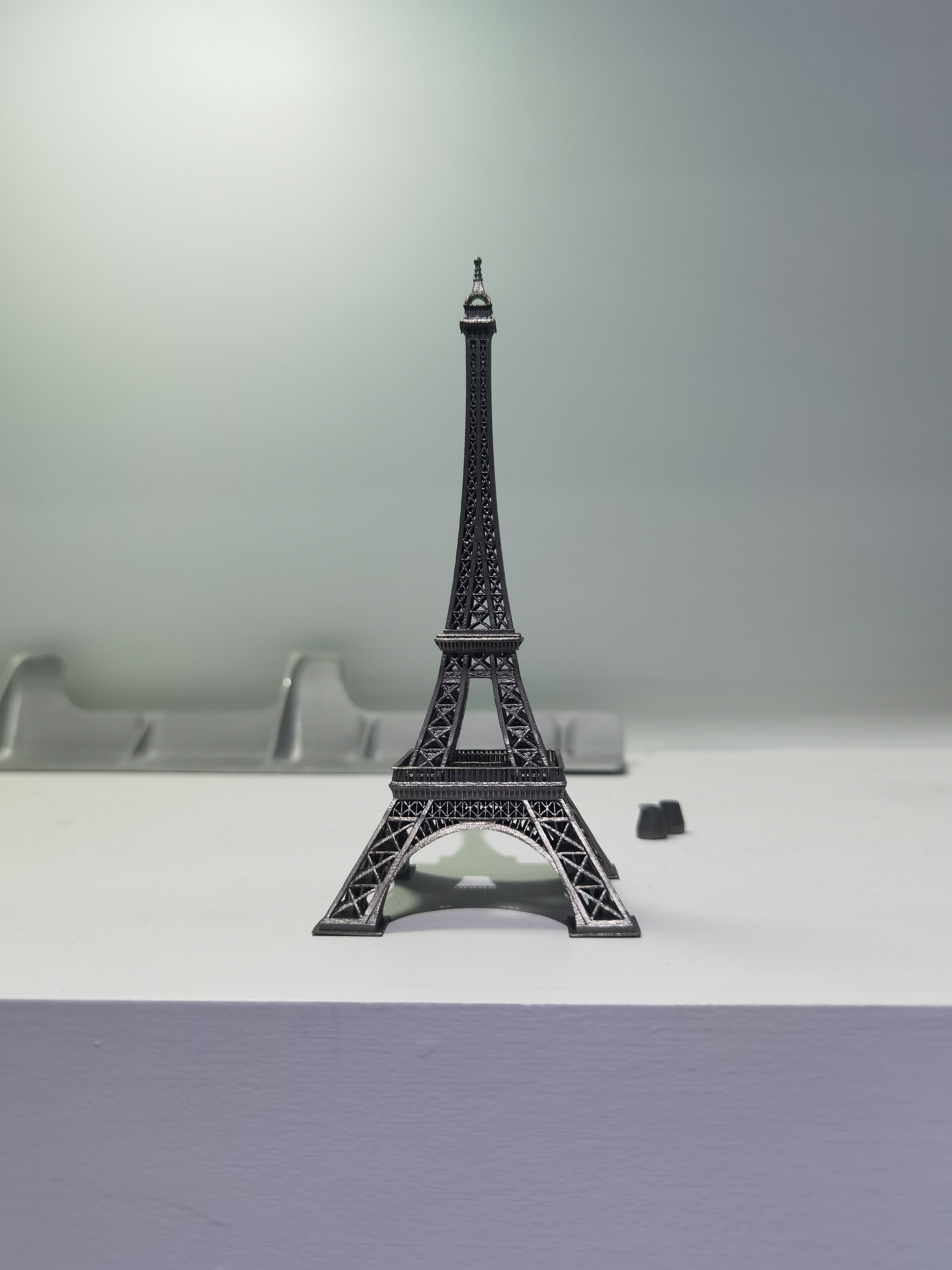

The GTS150 SLM 3D printer is widely used in the applicatons like dental, medical, education, material R&D, semi conductors, consuming electronics, etc. It can work widely with the materials like stainless steel, titanium alloy, chrome-cobalt alloy, aluminum alloy, etc.
