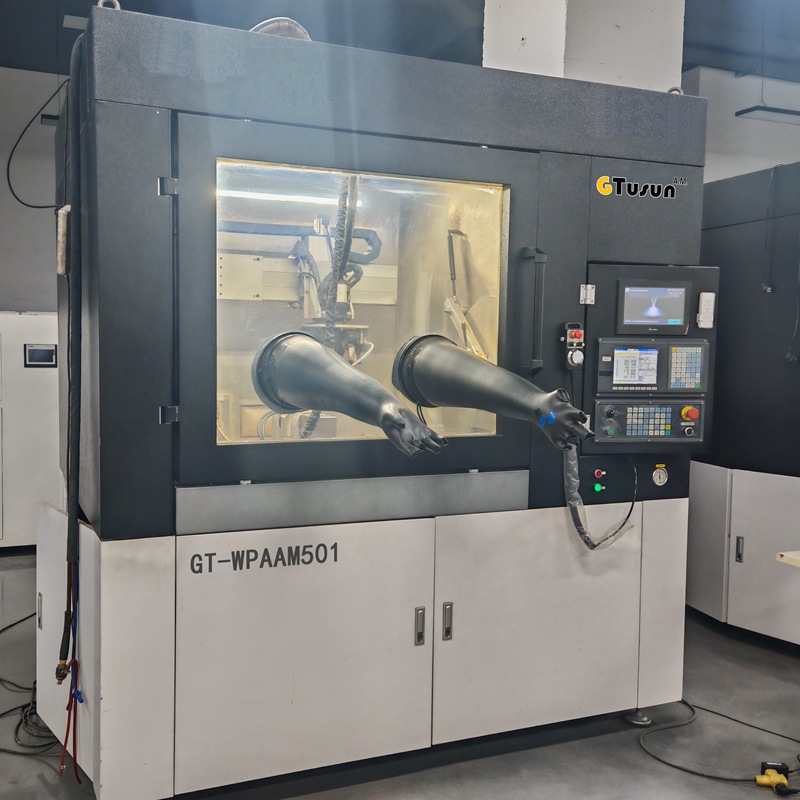

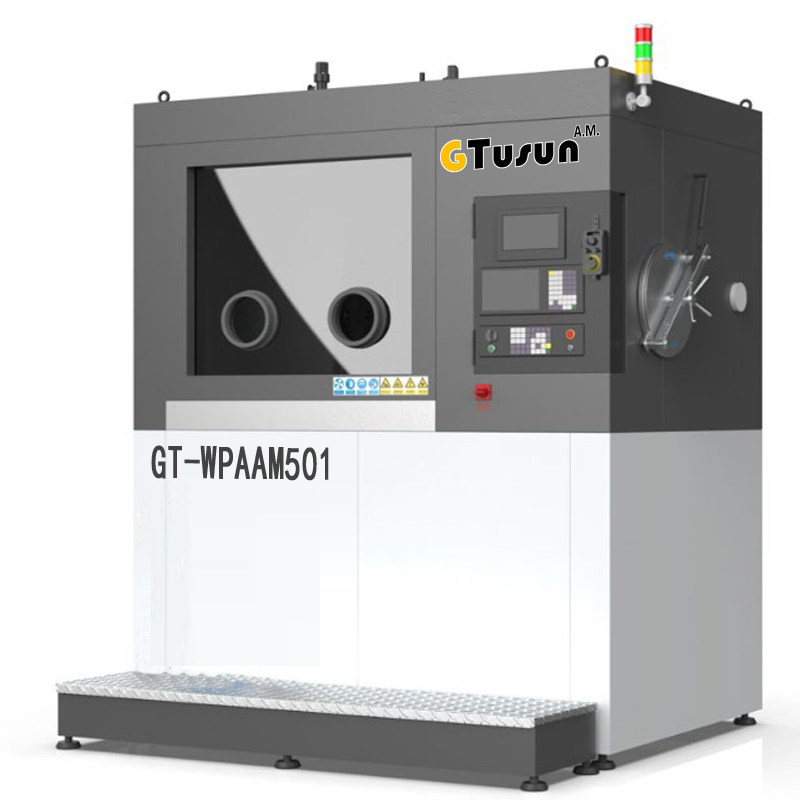

GT-WPAAM501
Product Attributes :
WPAAM uses plasma as energy source and tanditional metal wire as raw material to form parts within additive manufacturing solution, which has features of high strength performance than WAAM, big size fabrication, fast printing, high efficiency, titanium availability.
It can be widely used in the applications like aerospace, aviation, energy, etc.
Product Description
Specifications
| Energy | Plasma |
| Material | low carbon steel, stainless steel, superalloy, inconel based alloy, titanium, aluminum |
| Protective environment | Argon |
| Path organizing softare | 4 axies slicing |
| Current | 30-300A |
| Oxygen content | <100ppm |
| Layer thickness | 0.5-3.5mm |
| Wire feeding speed | 0.3-3.5m/min |
| Positioning | ±0.05mm |
| Printing accuracy | ±0.5mm |
| Printing efficiency | 0.3-2kg/h |
| Printing speed | 0-10mm/s |
| Substrate pre-heat | 0-200℃ |
| Printing size | 500*500*500mm (possible to customize) |
| Machine size | 1500*1100*2400mm |
Features
- 4-axis synchronization, unidirection duiring printing
- Easy operation, intelligent and automatic
- Low cost on raw material comparing with powder
- Available for additive manufacturing forming, repairing, welding, etc.
- Closed feedback on parts high and low points to keep current and voltage stable
