PRODUCT
GT-WPAAM1501
Product Attributes :

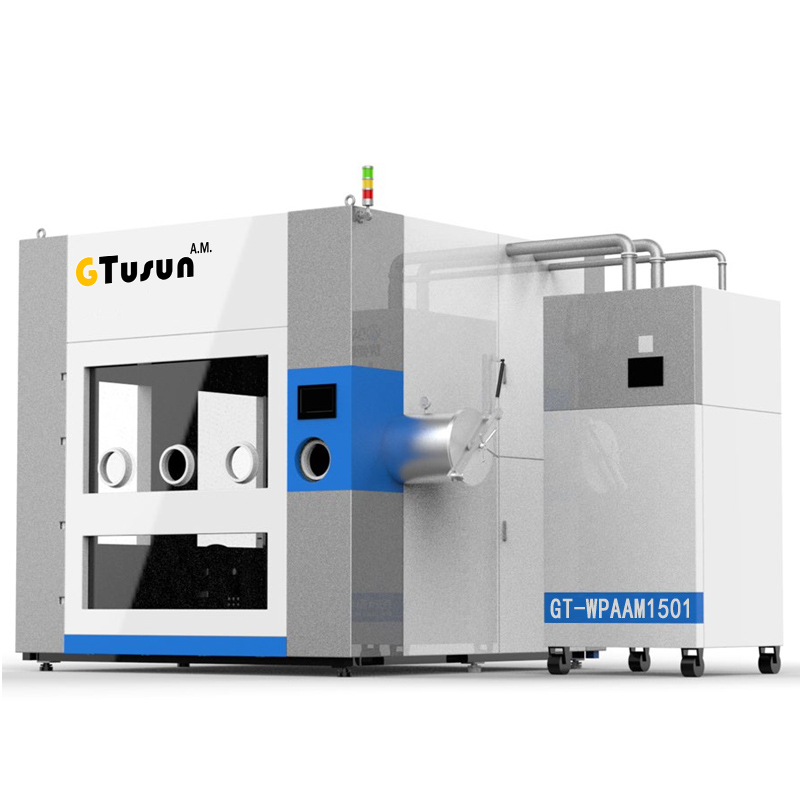

GT-WPAAM1501 has wide printing area, which is avaiable for big size parts printing. It uses plasma energy plus metal wire for parts forming, fabrication, etc.
It can be used in materials titanium, aluminium, steel, superalloy, etc. in the applications aerospace, aviation, energy, etc.
Product Description
Specifications
| Energy | Plasma |
| Material | low carbon steel, stainless steel, superalloy, inconel based alloy, titanium, aluminum |
| Protective environment | Argon |
| Path organizing softare | 4 axies slicing |
| Current | 30-300A |
| Oxygen content | <100ppm |
| Layer thickness | 0.5-3.5mm |
| Wire feeding speed | 0.3-3.5m/min |
| Positioning | ±0.05mm |
| Printing accuracy | ±0.5mm |
| Printing efficiency | 0.3-2kg/h |
| Printing speed | 0-10mm/s |
| Substrate pre-heat | 0-200℃ |
| Printing size | 1500*1500*1000mm (possible to customize) |
| Machine size | 2220*2270*2850mm |
