PRODUCT

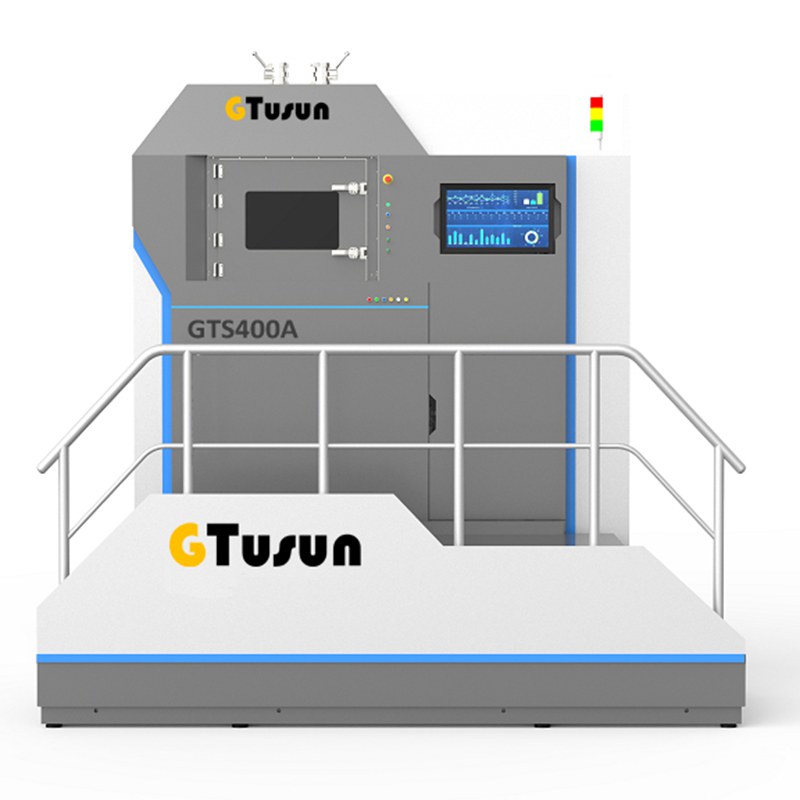

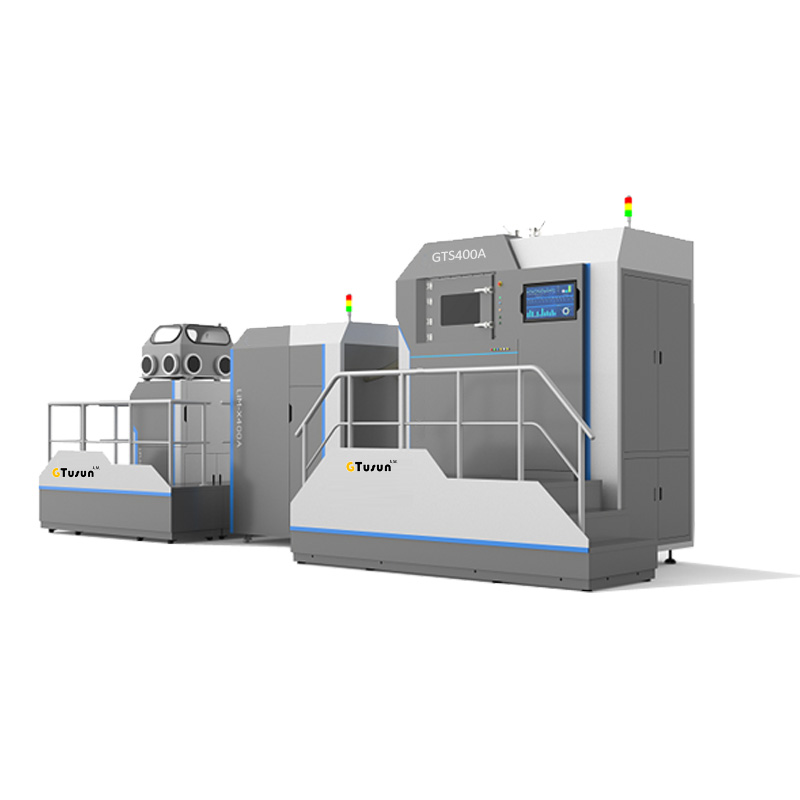

GTS400A 3D Printer

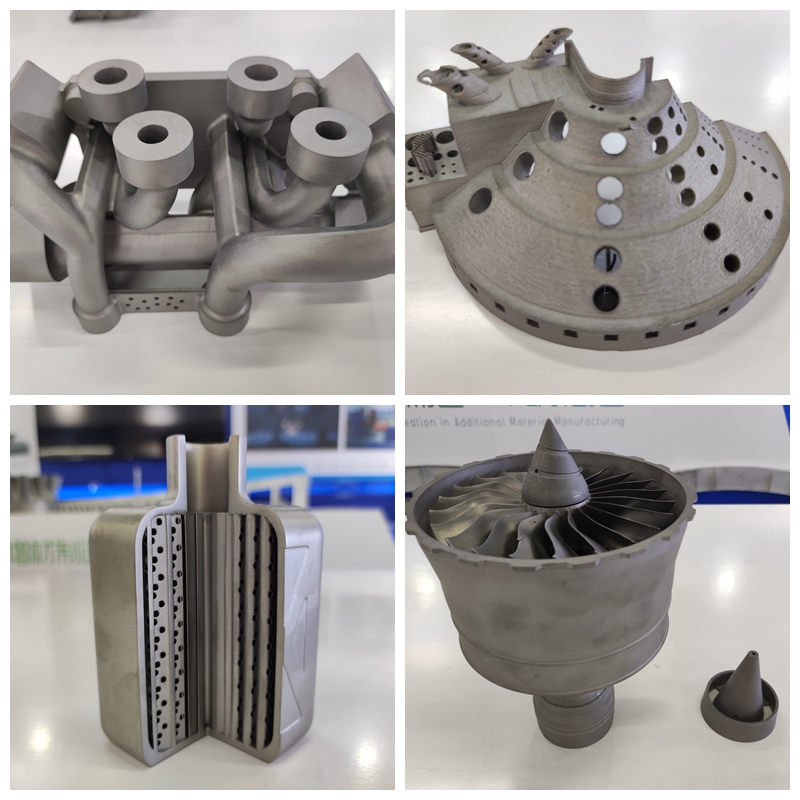

GTS400-L is a typical middle size machine for industrial 3D printing purpose, it can be widely used in the automotive, aerospace, aircraft, metallurgy, mold applications.
Description
Equipment research and development takes the process as the startingpoint, integrates the data and experience accumulated by the process R&D andtechnical service team, and constantly iterates and optimizes according to thefeedback of the process team in the equipment testing , so as to achieve theoptimal match between the equipment and the process.
Specifications
|
Technical Parameters of LiM-X400 Series |
|
|
Build Envelope |
400mm x 400mm x 550mm Single Laser |
|
Laser Power |
IPG 500W; 500Wx2; 1000W; 1000Wx2 |
|
Beam Focus Diameter |
80~120 u m |
|
Build Rate |
≥40cm3h Single Laser; |
|
Power Dissipation |
≤7kW/h 1000W x 2 Laser，Including Auxiliary Equipment |
|
Preheating Temperature |
RT+20°C~200°C |
|
Recoater |
Variable Speed Powder Recoater<One-way/Two-way> |
|
Power Input |
AC380V，50Hz，3Ph/N/PE |
|
Dimensions |
2.5m x 1.5m x 3.1m SLM Machine Only |
|
Weight |
4000kg SLM Machine Only |
|
Installation Size |
10m x 8m x 4.5m |
