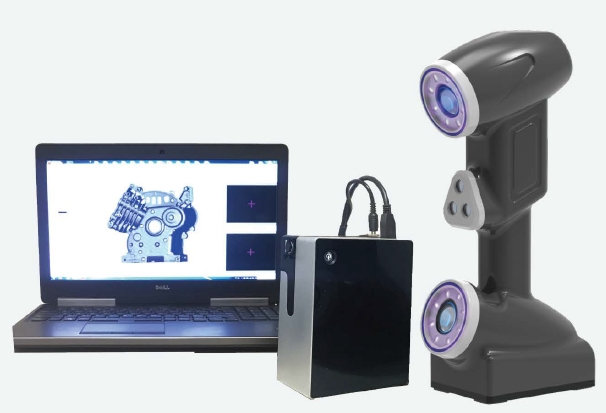

GTScan hand-held laser 3D Scanner
GTScan series product is standard hand-held metrological indutrial laser 3D scanner, this is a good product for general purposes such as stardard measurement, invert engineering, education, etc.
The GTScan series product can be widely used in verious applications such as automotive, locomotive, energy, etc.
Specifications
|
Product type |
GTScan 331 |
GTScan 551 |
GTScan 771 |
GTScan B11 |
GTScan GS |
|
Measurement rate |
265,000 points/sec |
350,000 points/sec |
480,000 points/sec |
1,360,000 points/sec |
350,000 ~ 1,360,000 points/sec |
|
Scan range |
320*250mm |
320*250mm |
320*250mm |
320*250mm |
600*550mm |
|
Laser |
Red/Blue (6 crossed laser lines + 1 laser line) |
Red/Blue (10 crossed laser lines + 1 laser line) |
Red/Blue (14 crossed laser lines + 1 laser line) |
Red/Blue (22 crossed laser lines + 1 laser line) |
Red/Blue (multiple crossed laser lines, customizable) |
|
Laser category |
Class II (eye safety) |
||||
|
Min. resolution |
0.1mm |
0.05mm |
|||
|
Wireless arithmetic unit |
Support |
||||
|
Photogrammetry |
Support |
||||
|
Round hole flash test |
Support |
||||
|
Accuracy |
Max. 0.02mm |
||||
|
Vol. accuracy |
0.02-0.05mm/m |
0.02-0.03mm/m |
0.02-0.025mm/m |
0.02-0.03mm/m |
|
|
Standard distance |
350mm |
550mm |
|||
|
The depth of field |
250mm |
350mm |
|||
|
Compatible software |
Geomagic, PolyWorks, NX, CATIA V5, SolidWorks, Pro/E, Inventor, Alias, 3ds Max, Maya, Solid Edge |
||||
|
Data transfer |
USB3.0/Wifi |
||||
|
Temperature |
-20℃~40℃ |
||||
|
Humidity |
10%~90% |
||||
Features
- Accuracy up to 0.02mm
- Resolution up to 0.05mm
- Single scan range up to 600*550mm

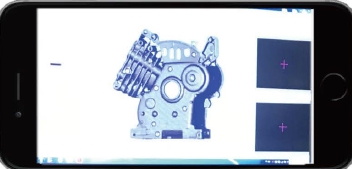

- 5G wireless data transfer available
- Round holes flast test available
