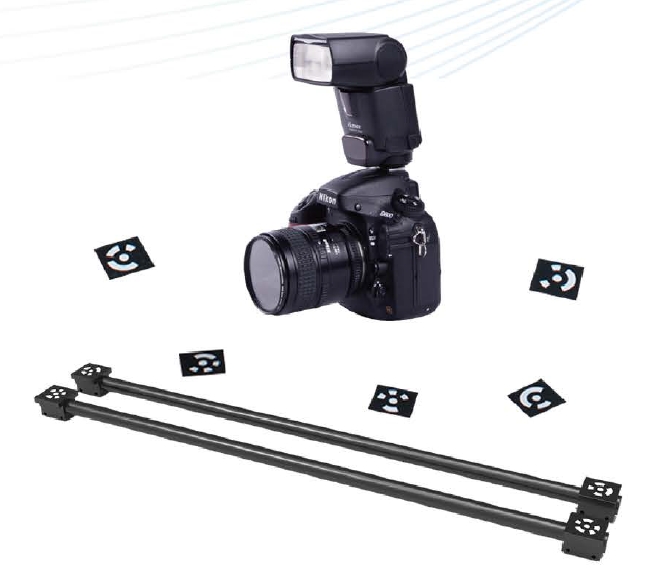

GT-CoordMeasis Photogrammetric System

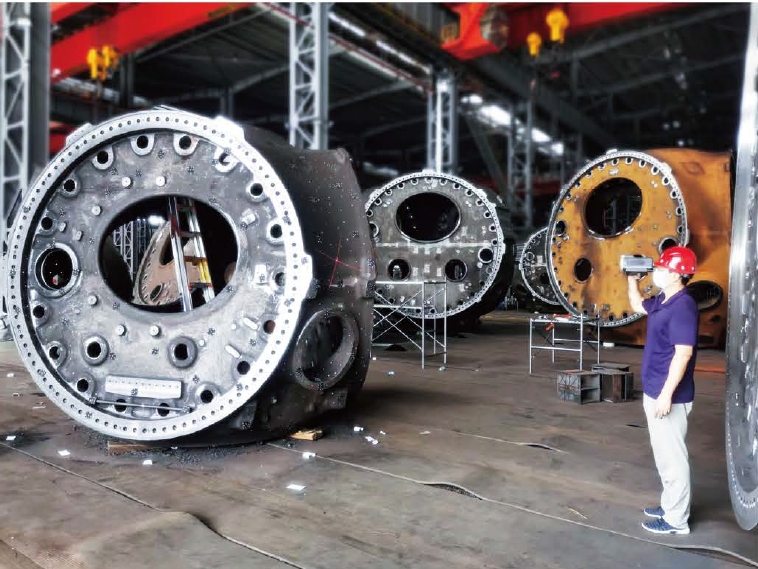

The GT-CoordMeasis global system is designed high precision geometric measurements of large parts, product equipment and other objects. Thanks to the super shooting width and depth of field, the volume accuracy can be up to 0.01+0.01mm/m for the large parts in the range of 2~15m.
It runs with high speed processing speed, the measurement can be completed in few minutes, including photographing and software processing.
The product can be used in harsh environment.
Specifications
|
Product type |
GT-CoordMeasis |
GT-CoordMeasis Pro |
|
|
Volume precision |
0.01mm+0.01mm/m |
0.01mm+0.01mm/m |
|
|
Mean deviation |
0.008mm/m |
0.007mm/m |
|
|
The depth of field |
5m |
6.5m |
|
|
Volume accuracy (when used with other products) |
GTScan |
0.02mm+0.025mm/m |
|
|
GTScan U |
0.02mm+0.015mm/m |
||
|
GTScan VX |
0.02mm+0.015mm/m |
||
|
GT-SeeTrack |
0.044mm+0.015mm/m |
||
|
GT-TriScan |
0.02mm+0.015mm/m |
||
|
Temperature |
-20℃~40℃ |
||
|
Humidity |
10%~90% |
||
Features
- Stick a mark wherever you need to measure

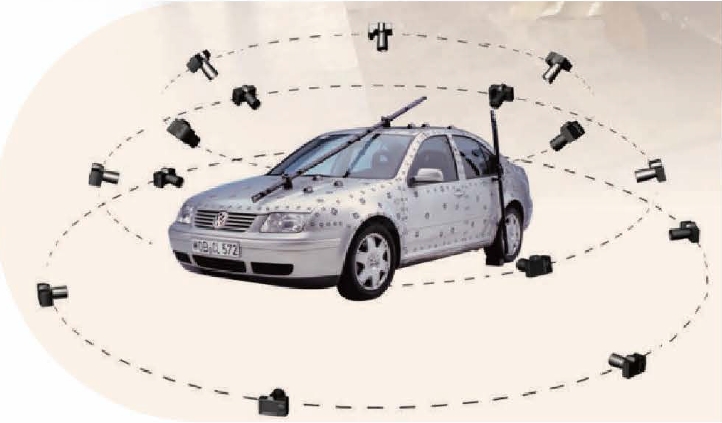

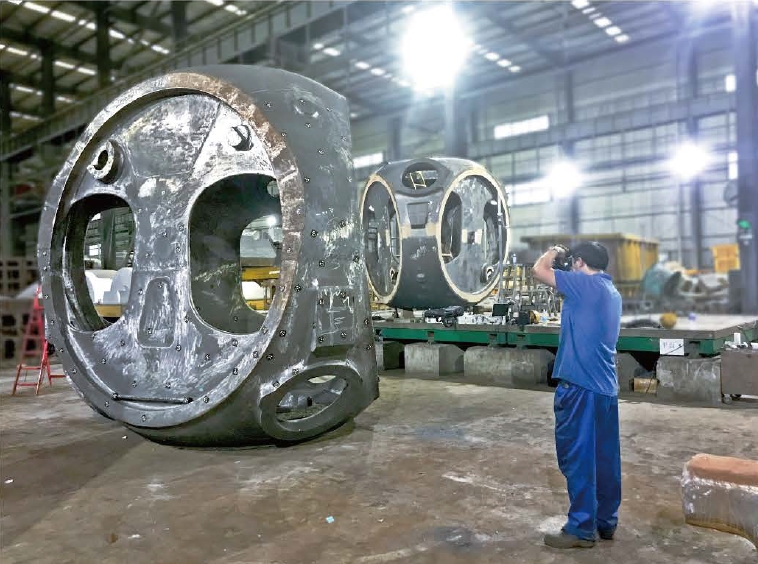

- Take photo from differenet angle with high-pixel digital camera
- Image imported automatically by the GT-CoordMeasis system
- 3D parsing

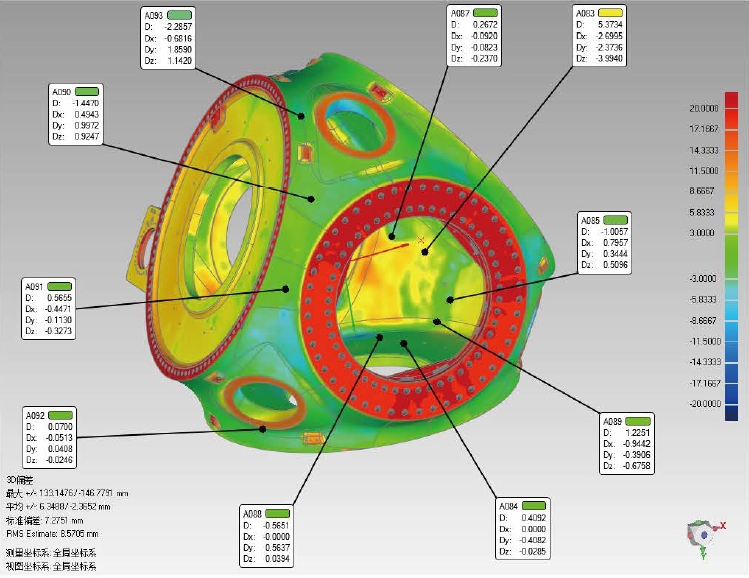

- The calculated data and the CAD model are aligned and analyzed
- Comparison report available
