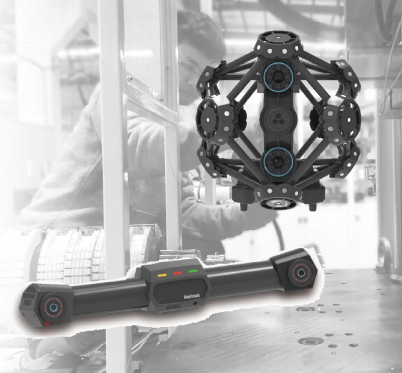

GT-SeeTrack Optical dynamic tracking 3D scanner

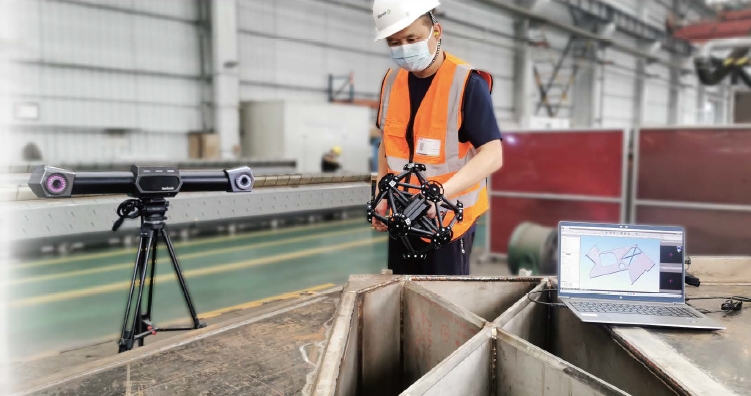

GT-SeeTrack optical dynamic tracking 3d scanning system is spcifically designed usually for big size parts scanning tasks, it is not necessary to mark points before scanning, which makes scanning work easier and convenient, meanwhile thanks to the specific built-in softare, it can track scanned part continously.
It can be widely used for big parts scanning within applications such as aerospace, aviation, energy, automotive, etc.
Specifications
|
Product model |
GT-SeeTrack |
|
Track the light source |
Infrared light source |
|
Scanning accuracy |
0.025mm |
|
Scanning speed |
1,300,000 points/sec |
|
Laser |
22 blue cross laser lines + 1 blue laser line (multiple laser forms can be customized) |
|
The depth of field |
250mm |
|
Max. scan surface range |
600*550mm |
|
Laser category |
Class II (eye safety) |
|
Min. resolution |
0.02mm |
|
Wireless arithmetic unit |
Support |
|
Photogrammetry |
Support |
|
Accuracy |
Max. 0.02mm |
|
Vol. accuracy |
0.064mm (9.1m3) 0.078mm (16.6m3) |
|
Repetition accuracy |
0.030mm |
|
Standard distance |
350mm |
|
The depth of field |
250mm |
|
Compatible software |
Geomagic, PolyWorks, NX, CATIA V5, SolidWorks, Pro/E, Inventor, Alias, 3ds Max, Maya, Solid Edge |
|
Data transfer |
USB3.0/Wifi |
|
Temperature |
-20℃~40℃ |
|
Humidity |
10%~90% |
Features
- No need to mark points, intelligent tracking
- Measurement level accuracy
- Super compatible and adaptive ablity for enviroment
- Easy to connect to other devices
- Light weight
- Wireless data transferring and connection
