GT-TriScan Blu-ray 3D Printer

Product Attributes :

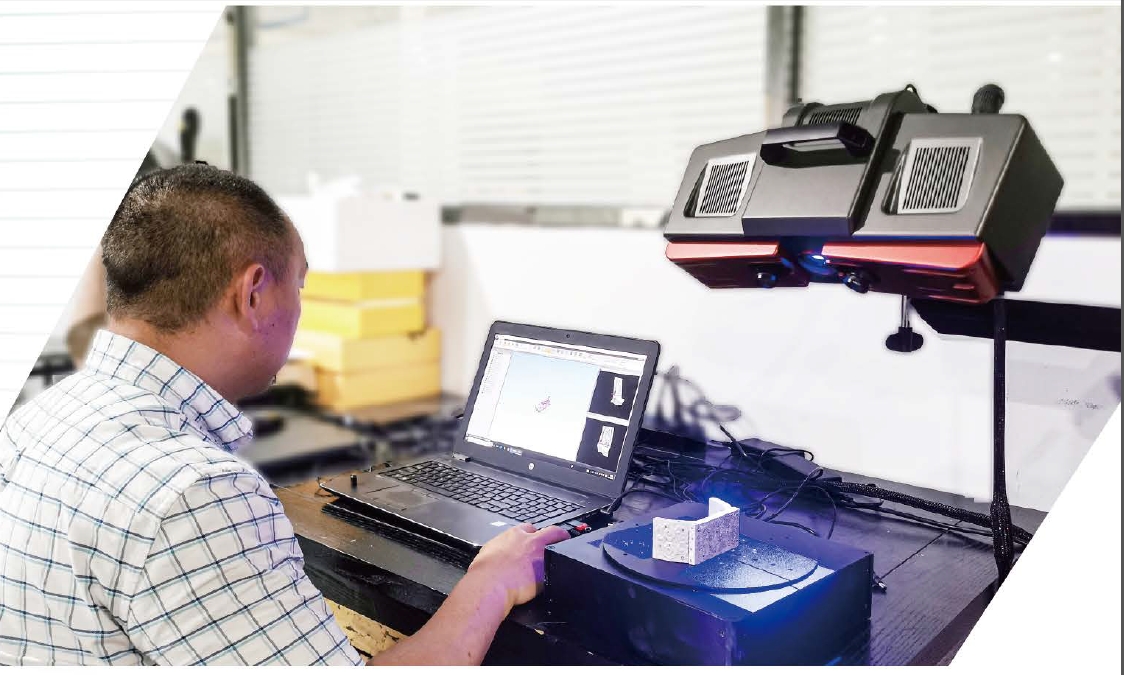

Blue ray 3D scanner, which has higher accuracy and reaction speed, which makes scanning tasks more accurate and faster.

It mostly used in the high end applications, for special material and geometry such as aerospace, aviation, energy, etc. which needs better performance.

Product Description

Specifications

Product type	GT-TriScan 130	GT-TriScan 500	GT-TriScan 900	GT-TriScan Plus

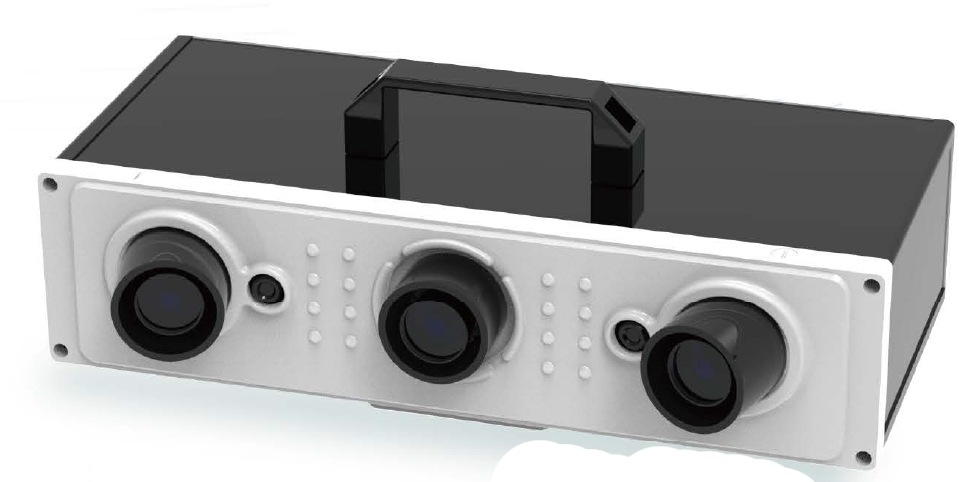

Pixel of sensor	1.3 million pixel * 2	5 million pixel * 2	9 million pixel * 2	5 million pixel * 2 (interchangeable lens)
Measuring range (mm)	400300~200150~100*75	400300~200150~100*75	480480~240120mm	400300~200150~100*75
Accuracy of measurement (mm)	0.03~0.015~0.01	0.02~0.01~0.005	0.015~0.01	400300~200150~100*75
Average point spacing (mm)	0.3~0.15~0.08	0.15~0.08~0.04	0.08~0.04	0.15~0.08~0.04
Single scan time	<=1s	<=1s	<=1.5s	<=1s
Scanning mode	Non-contact surface scanning
Splicing method	“one-click” mark point automatic stitching
Precision control mode	Built-in intelligent global error control module, support 3D photogrammetry (photographic positioning) system

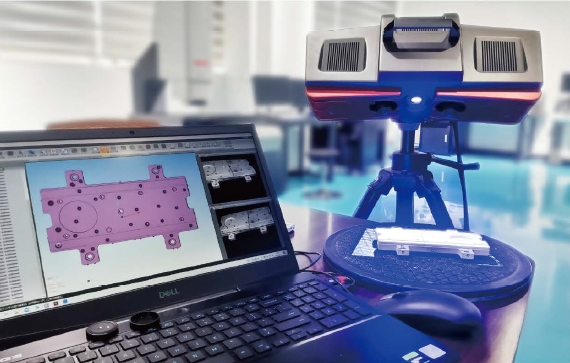

Turntable (optional)	Support one axis, two axis electronic control turntable (rotating screen model can control the turntable to automatically switch scanning view)
Optical probe (optional)	Support contact measurement with optical probe (intelligent measurement point: no need to pull the hardware board or click the software button, can be measured with the point)
Compatible software	Geomagic, PolyWorks, NX, CATIA V5, SolidWorks, Pro/E, Inventor, Alias, 3ds Max, Maya, Solid Edge
Data transfer	USB3.0
Temperature	-20℃~40℃
Humidity	10%~90%
