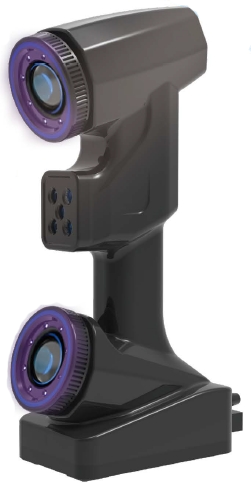

GTScan VX Multi-mode complex 3D Scanner
GTScan VX series is the multi-mode complex 3D scanner, which has compound and complex laser system plus programming system to get features of super fine, super efficient, intelligent measurement and control, etc.
This series proudct is mostly used for big size parts, high accuracy, fast scanning speed and other high scanning techinical requirements.
Specificaitons
|
Product type |
GTScan VX5 (Compound 3D scanner) |
||
|
Scanning mode |
Fine scanning mode |
Standard scanning mode (incl. single line scan mode) |
Round hole flash test mode |
|
Scanning accuracy |
Up to 0.01mm |
Up to 0.02mm |
Up to 0.03mm |
|
Measurement rate |
900,000 points/sec |
2,100,000 points/sec |
100 holes/sec |
|
Standard distance |
240mm |
320mm |
320mm |
|
Laser |
14 blue cross laser lines |
26 blue cross laser lines + 1 blue laser line |
Don’t rely on any laser line |
|
Line source combined |
41 blue laser lines |
||
|
The depth of field |
500mm |
||
|
Scanning range |
600*550mm |
||
|
Laser category |
Class II (eye safety) |
||
|
Min. resolution |
0.01mm |
||
|
Wireless arithmetic unit |
Support |
||
|
Photogrammetry |
Support |
||
|
Accuracy |
Max. 0.02mm |
||
|
Vol. accuracy |
0.015+0.03mm/m (independent of global photogrammetry) 0.015+0.02mm/m (based-on the built-in global photogrammetry module) 0.015+0.015mm/m (based-on external global photogrammetry system) |
||
|
Standard distance |
350mm |
||
|
The depth of field |
250mm |
||
|
Compatible software |
Geomagic, PolyWorks, NX, CATIA V5, SolidWorks, Pro/E, Inventor, Alias, 3ds Max, Maya, Solid Edge |
||
|
Data transfer |
USB3.0/Wifi |
||
|
Temperature |
-20℃~40℃ |
||
|
Humidity |
10%~90% |
||
Features
- 5 in 1 laser, 41 blue laser lines, measurement up to 2.1 million points per second
- Reselotion up to 0.01mm
- Max. scanning range up to 600*550mm
- Three-speed scanning modes
- 5G wireless data fransfer available
- Built-in global photogrammetry module and round hole flash measurement function

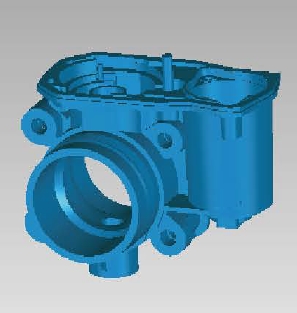

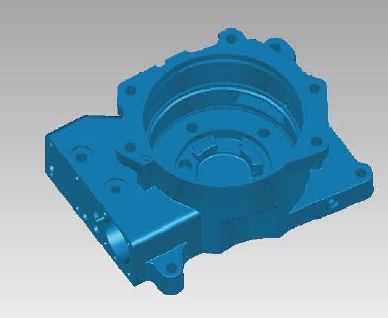

- Ultra high efficiency smooth scanning
- Ultra-fine scanning with perfect details
- Intelligent flash measuring holes position
